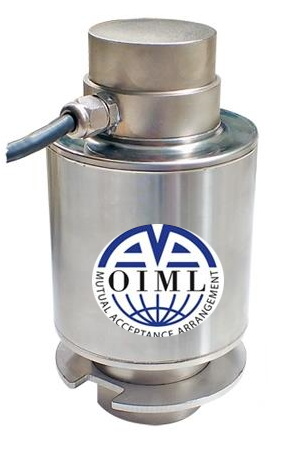

30 Ton Baskı Tipi Loadcell
•Minimum load cell verification interval: Vmin = EMax / 10.000
•Maximum number of load cell divisions: nLC = 4000 (C4)
•Sensitivity: 2mV/V +/- 0,1%
•Temperature effect on full scale: 0,002% /°C
•Temperature effect on zero: 0,002% /°C
•Compensated Temperature Range: -10°C/+40°C
•Operating Temperature Range: -30°C/+70°C
•Creep error after 30 minutes: 0,02% F.S.
•Excitation voltage from 5 to 15 VDC
•Input Resistance: 700 ± 20 Ohm
•Output Resistance: 703 ± 7 Ohm
•Zero Balance: +/-1% F.S.
•Insulation Resistance: >5000 MOhm
•Safe Overload: >150% F.S.
•Ultimate Overload: 250% F.S.
•4-wire shielded cable, 14m long, 5mm diameter.
